Vicor｜BCMシリーズ絶縁型変換比固定DC-DCコンバーター

VicorのBCMシリーズは、通信、コンピューティング、産業機器、有線ドローン、航空宇宙・防衛アプリケーションなどで使われる中間バス電圧変換（IBC）アーキテクチャに対応できる絶縁型変換比固定DC-DC コンバーターです。

サンプルお問い合わせ

資料請求

商品基礎情報

BCMシリーズ　絶縁型変換比固定DC-DCコンバーター

特長と利点

・最大98%の変換効率
・最大168W/㎤の電力密度
・列接続で大電力に対応
・双方向電圧変換
・出力の直列接続で高電圧を出力

製品仕様

項目	ウルトラハイボルテージ	ハイボルテージ	ローボルテージ
入力電圧範囲	400 – 800V	200 – 410V	36 – 60V
変換効率 (最大)	97%	98%	97.60%
電力密度 (最大)	700W/in³ (43W/cm³)	2,735W/in³ (167W/cm³)	2,870W/in³ (175W/cm³)
パッケージ	VIAパッケージ	VIAパッケージ VI Chip Full ChiPパッケージ	VI Chip Full / Half ChiPパッケージ

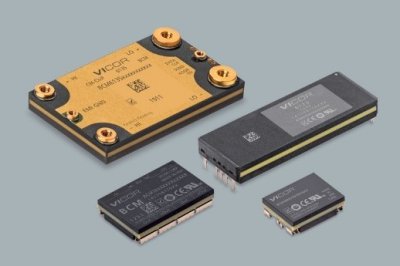

パッケージ

パッケージ	特長
VIAパッケージ 110.55×35.54×9.40(mm) 95.59×35.54×9.40(mm)	・シャーシマウントまたはPCBスルーホール実装
	・フラット型のため、放熱設計が容易
	・EMIフィルタ内蔵
	・PMBus🄬通信機能
ChiPパッケージ 61.00×25.14×7.21(mm) 63.34×22.80×7.21(mm)	・スルーホール実装
	・内部の発熱部品が上下面対称に配置されているため両面から放熱可能
	・PMBus🄬制御 (デジタル・アイソレータ／デジタル・スーパーバイザー使用)
VI ChiP Full / Halfパッケージ 32.50×22.00×6.73(mm) 22.00×16.50×6.73(mm)	・SMTまたはスルーホール実装

概要

BCMシリーズは、入力電圧範囲が48V-800Vと広く、電圧変換比Kも様々な値があるため、多くの用途に対応できます。独自のスイッチング方法SAC® (Sine Amplitude Converter) 技術を用いることで、高効率・大電力密度を実現します。並列接続することで大電力に対応することができ、絶縁出力を直列接続することで、高電圧を出力することができます。双方向変換特性があるため、低い出力電圧側に配置するコンデンサを入力側へ移すことで、負荷に必要な大容量コンデンサを減らすことができます。

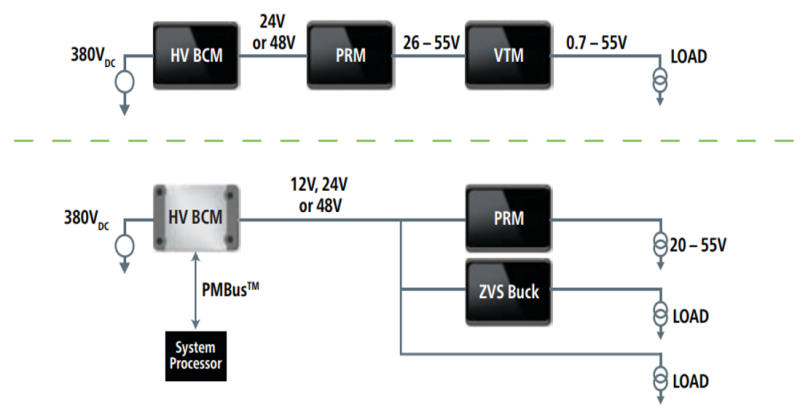

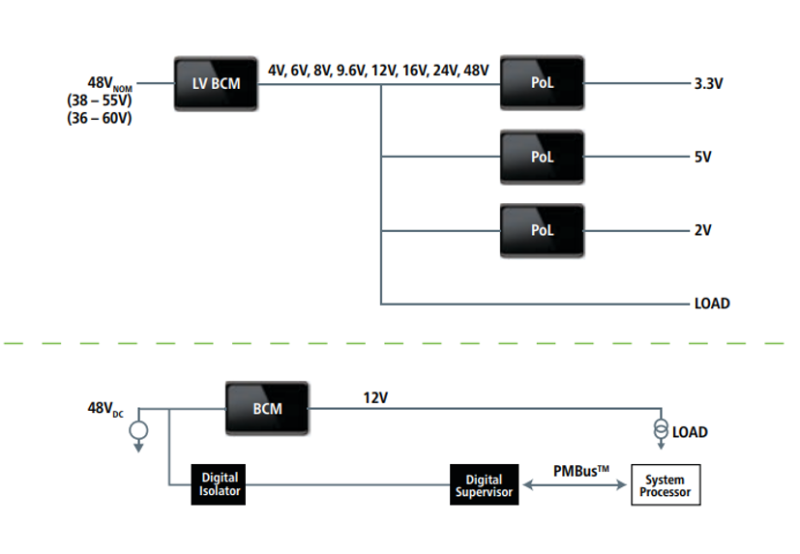

アプリケーション

製品ラインアップ

製品番号	入力電圧 (V)	出力電圧 (V)	出力電流（A)	Kファクター	制御インターフェース	実装方式	逆方向変換	負荷キャパシタ最大値 (uF)
MBCM270T450M270A00	200 – 330	33.4 – 55.1	6.25	1/6	Analog	Through Hole	No	50
MBCM270F450M270A00	200 – 330	33.4 – 55.1	6.25	1/6	Analog	J-Lead	No	50
MBCM270F338M235A00	240 – 330	30 – 41.2	7.3	1/8	Analog	J-Lead	No	100
BCM6135CD1E5165T00	260 – 410	31.1 – 51.2	65	1/8	PM Bus	Chassis Mount	No	100
BCM6123TD1E5135T0R	260 – 410	32.5 – 51.2	35	1/8	Reverse Analog	Through Hole	Yes	100
BCM6123TD1E5135T0P	260 – 410	32.5 – 51.2	35	1/8	Reverse Digital	Through Hole	Yes	100
BCM6123TD1E5135T01	260 – 410	32.5 – 51.2	35	1/8	Digital	Through Hole	No	100
BCM6123TD1E5135T00	260 – 410	32.5 – 51.2	35	1/8	Analog	Through Hole	No	100
BCM6123TD1E5126T0R	260 – 410	32.5 – 51.2	25.7	1/8	Reverse Analog	Through Hole	Yes	100
BCM6123TD1E5126T01	260 – 410	32.5 – 51.2	25.7	1/8	Digital	Through Hole	No	100
BCM6123TD1E5126T00	260 – 410	32.5 – 51.2	25.7	1/8	Analog	Through Hole	No	100
BCM6123TD1E5117T0R	260 – 410	32.5 – 51.2	16.9	1/8	Reverse Analog	Through Hole	Yes	100
BCM6123TD1E5117T01	260 – 410	32.5 – 51.2	16.9	1/8	Digital	Through Hole	No	100
BCM6123TD1E5117T00	260 – 410	32.5 – 51.2	16.9	1/8	Analog	Through Hole	No	100
BCM6123TD1E2663T0R	260 – 410	16.3 – 25.6	62.5	1/16	Reverse Analog	Through Hole	Yes	1000
BCM6123TD1E2663T01	260 – 410	16.3 – 25.6	62.5	1/16	Digital	Through Hole	No	1000
BCM6123TD1E2663T00	260 – 410	16.3 – 25.6	62.5	1/16	Analog	Through Hole	No	1000
BCM6123TD1E2663M00	260 – 410	16.3 – 25.6	62.5	1/16	Analog	Through Hole	No	1000
BCM6123TD1E2662T01	260 – 410	16.3 – 25.6	62.5	1/16	Digital	Through Hole	No	1000
BCM6123TD1E2662T00	260 – 410	16.3 – 25.6	62.5	1/16	Analog	Through Hole	No	1000
BCM6123TD1E13A3T0R	260 – 410	8.1 – 12.8	125	1/32	Reverse Analog	Through Hole	Yes	1000
BCM6123TD1E13A3T0P	260 – 410	8.1 – 12.8	125	1/32	Reverse Digital	Through Hole	Yes	1000
BCM6123TD1E13A3T01	260 – 410	8.1 – 12.8	125	1/32	Digital	Through Hole	No	1000
BCM6123TD1E13A3T00	260 – 410	8.1 – 12.8	125	1/32	Analog	Through Hole	No	1000
BCM6123TD1E13A3M00	260 – 410	8.1 – 12.8	125	1/32	Analog	Through Hole	No	1000
BCM6123TD1E1368T0R	260 – 410	8.1 – 12.8	68	1/32	Reverse Analog	Through Hole	Yes	1000
BCM6123TD1E1368T01	260 – 410	8.1 – 12.8	68	1/32	Digital	Through Hole	No	1000
BCM6123TD1E1368T00	260 – 410	8.1 – 12.8	68	1/32	Analog	Through Hole	No	1000
BCM6123TD0G5030T0R	200 – 400	25 – 50	30	1/8	Reverse Analog	Through Hole	Yes	200
BCM6123TD0G5030T00	200 – 400	25 – 50	30	1/8	Analog	Through Hole	Yes	200
BCM6123TD0G5030M0R	200 – 400	25 – 50	30	1/8	Reverse Analog	Through Hole	Yes	200
BCM6123TD0G5030M0P	200 – 400	25 – 50	30	1/8	Reverse Digital	Through Hole	Yes	200
BCM6123TD0G5030M00	200 – 400	25 – 50	30	1/8	Analog	Through Hole	Yes	200
BCM6123T60E15A3T0R	36 – 60	9-15	130	1/4	Reverse Analog	Through Hole	Yes	3000
BCM6123T60E15A3T01	36 – 60	9-15	130	1/4	Digital	Through Hole	No	3000
BCM6123T60E15A3T00	36 – 60	9-15	130	1/4	Analog	Through Hole	No	3000
BCM6123T60E10A5T01	36 – 60	6-10	150	1/6	Digital	Through Hole	No	6000
BCM6123T60E10A5T00	36 – 60	6-10	150	1/6	Analog	Through Hole	No	6000
BCM48BT480T300A00	38 – 55	38 – 55	6.25	1	Analog	Through Hole	No	100
BCM48BT480M300A00	38 – 55	38 – 55	6.25	1	Analog	Through Hole	No	100
BCM48BT320T300A00	38 – 55	25.3 – 36.7	9.4	2/3	Analog	Through Hole	No	100
BCM48BT240T300A00	38 – 55	19 – 27.5	12.5	1/2	Analog	Through Hole	No	300
BCM48BT240M300A00	38 – 55	19 – 27.5	12.5	1/2	Analog	Through Hole	No	300
BCM48BT160T240A00	38 – 55	12.7 – 18.3	15	1/3	Analog	Through Hole	No	600
BCM48BT120T300A00	38 – 55	9.5 – 13.8	30	1/4	Analog	Through Hole	No	100
BCM48BT096T240A00	38 – 55	7.6 – 11	25	1/5	Analog	Through Hole	No	1600
BCM48BT080T240A00	38 – 55	6.3 – 9.2	36	1/6	Analog	Through Hole	No	2300
BCM48BT060T240A00	38 – 55	4.8 – 6.9	47	1/8	Analog	Through Hole	No	4000
BCM48BT060M240A00	38 – 55	4.8 – 6.9	47	1/8	Analog	Through Hole	No	4000
BCM48BT040T200B00	38 – 55	3.2 – 4.6	53	1/12	Analog	Through Hole	No	9100
BCM48BH120T120B00	38 – 55	9.5 – 13.8	10	1/4	Analog	J-Lead	No	500
BCM48BF480T300A00	38 – 55	38 – 55	6.25	1	Analog	J-Lead	No	100
BCM48BF320T300A00	38 – 55	25.3 – 36.7	9.4	2/3	Analog	J-Lead	No	100
BCM48BF320M300A00	38 – 55	25.3 – 36.7	9.4	2/3	Analog	J-Lead	No	100
BCM48BF240T300A00	38 – 55	19 – 27.5	12.5	1/2	Analog	J-Lead	No	300
BCM48BF240M300A00	38 – 55	19 – 27.5	12.5	1/2	Analog	J-Lead	No	300
BCM48BF160T240A00	38 – 55	12.7 – 18.3	15	1/3	Analog	J-Lead	No	600
BCM48BF160M240A00	38 – 55	12.7 – 18.3	15	1/3	Analog	J-Lead	No	600
BCM48BF120T300A00	38 – 55	9.5 – 13.8	30	1/4	Analog	J-Lead	No	1000
BCM48BF120M300A00	38 – 55	9.5 – 13.8	30	1/4	Analog	J-Lead	No	1000
BCM48BF096T240A00	38 – 55	7.6 – 11	25	1/5	Analog	J-Lead	No	1600
BCM48BF096M240A00	38 – 55	7.6 – 11	25	1/5	Analog	J-Lead	No	1600
BCM48BF080T240A00	38 – 55	6.3 – 9.2	36	1/6	Analog	J-Lead	No	2300
BCM48BF080M240A00	38 – 55	6.3 – 9.2	36	1/6	Analog	J-Lead	No	2300
BCM48BF060T240A00	38 – 55	4.8 – 6.9	47	1/8	Analog	J-Lead	No	4000
BCM48BF060M240A00	38 – 55	4.8 – 6.9	47	1/8	Analog	J-Lead	No	4000
BCM48BF040T200B00	38 – 55	3.2 – 4.6	53	1/12	Analog	J-Lead	No	9100
BCM48BF030T210A00	38 – 55	2.4 – 3.4	80	1/16	Analog	J-Lead	No	16000
BCM4414VH0E5035T02	500 – 800	31.2 – 50	35	1/16	PM Bus	Chassis Mount	No	470
BCM4414VH0E5035M02	500 – 800	31.2 – 50	35	1/16	PM Bus	Chassis Mount	No	470
BCM4414VG0F4440T02	400 – 700	25 – 43.7	40	1/16	PM Bus	Chassis Mount	No	470
BCM4414VG0F4440M02	400 – 700	25 – 43.7	40	1/16	PM Bus	Chassis Mount	No	470
BCM4414VG0F4440C02	400 – 700	25 – 43.7	40	1/16	PM Bus	Chassis Mount	No	470
BCM4414VD1E5135T02	260 – 410	32.5 – 51.3	35	1/8	PM Bus	Chassis Mount	No	100
BCM4414VD1E5135C02	260 – 410	32.5 – 51.3	35	1/8	PM Bus	Chassis Mount	No	100
BCM4414VD1E2663T02	260 – 410	16.3 – 25.6	62.5	1/16	PM Bus	Chassis Mount	Yes	1000
BCM4414VD1E2663C02	260 – 410	16.3 – 25.6	62.5	1/16	PM Bus	Chassis Mount	Yes	1000
BCM4414VD1E13A3T02	260 – 410	8.1 – 12.8	125	1/32	PM Bus	Chassis Mount	No	1000
BCM4414VD1E13A3C02	260 – 410	8.1 – 12.8	125	1/32	PM Bus	Chassis Mount	No	1000
BCM4414BH0E5035M10	500 – 800	31.2 – 50	35	1/16	PM Bus	Board Mount Long Pin	No	470
BCM4414BH0E5035M06	500 – 800	31.2 – 50	35	1/16	PM Bus	Board Mount Short Pin	No	470
BCM4414BG0F4440T10	400 – 700	25 – 43.7	40	1/16	PM Bus	Board Mount Long Pin	No	470
BCM4414BG0F4440T06	400 – 700	25 – 43.7	40	1/16	PM Bus	Board Mount Short Pin	No	470
BCM4414BG0F4440M10	400 – 700	25 – 43.7	40	1/16	PM Bus	Board Mount Long Pin	No	470
BCM4414BG0F4440M06	400 – 700	25 – 43.7	40	1/16	PM Bus	Board Mount Short Pin	No	470
BCM4414BG0F4440C10	400 – 700	25 – 43.7	40	1/16	PM Bus	Board Mount Long Pin	No	470
BCM4414BG0F4440C06	400 – 700	25 – 43.7	40	1/16	PM Bus	Board Mount Short Pin	No	470
BCM4414BD1E5135T10	260 – 410	32.5 – 51.3	35	1/8	PM Bus	Board Mount Long Pin	No	100
BCM4414BD1E5135T06	260 – 410	32.5 – 51.3	35	1/8	PM Bus	Board Mount Short Pin	No	100
BCM4414BD1E5135C10	260 – 410	32.5 – 51.3	35	1/8	PM Bus	Board Mount Long Pin	No	100
BCM4414BD1E5135C06	260 – 410	32.5 – 51.3	35	1/8	PM Bus	Board Mount Short Pin	No	100
BCM4414BD1E2663T10	260 – 410	16.3 – 25.6	62.5	1/16	PM Bus	Board Mount Long Pin	Yes	1000
BCM4414BD1E2663T06	260 – 410	16.3 – 25.6	62.5	1/16	PM Bus	Board Mount Short Pin	Yes	1000
BCM4414BD1E2663C10	260 – 410	16.3 – 25.6	62.5	1/16	PM Bus	Board Mount Long Pin	Yes	1000
BCM4414BD1E2663C06	260 – 410	16.3 – 25.6	62.5	1/16	PM Bus	Board Mount Short Pin	Yes	1000
BCM4414BD1E13A3T10	260 – 410	8.1 – 12.8	125	1/32	PM Bus	Board Mount Long Pin	No	1000
BCM4414BD1E13A3T06	260 – 410	8.1 – 12.8	125	1/32	PM Bus	Board Mount Short Pin	No	1000
BCM4414BD1E13A3C10	260 – 410	8.1 – 12.8	125	1/32	PM Bus	Board Mount Long Pin	No	1000
BCM4414BD1E13A3C06	260 – 410	8.1 – 12.8	125	1/32	PM Bus	Board Mount Short Pin	No	1000
BCM400P500M1K8A31	260 – 410	32.5 – 51.2	35	1/8	Digital	Through Hole	No	100
BCM400P500M1K8A30	260 – 410	32.5 – 51.2	35	1/8	Analog	Through Hole	No	100
BCM384T480T325B00	360 – 400	45 – 50	7.05	1/8	Analog	Through Hole	No	100
BCM384T120T300A00	360 – 400	11.2 – 12.5	27.3	1/32	Analog	Through Hole	No	1000
BCM384P120M800AC1	260 – 410	8.1 – 12.8	68	1/32	Digital	Through Hole	No	1000
BCM384P120M800AC0	260 – 410	8.1 – 12.8	68	1/32	Analog	Through Hole	No	1000
BCM384P120M1K5AC1	260 – 410	8.1 – 12.8	125	1/32	Digital	Through Hole	No	1000
BCM384F480T325B00	360 – 400	45 – 50	7.05	1/8	Analog	J-Lead	No	100
BCM384F120T300A00	360 – 400	11.2 – 12.5	27.3	1/32	Analog	J-Lead	No	1000
BCM380P475M800A31	260 – 410	32.5 – 51.2	16.9	1/8	Digital	Through Hole	No	100
BCM380P475M800A30	260 – 410	32.5 – 51.2	16.9	1/8	Analog	Through Hole	No	100
BCM380P475M1K2A31	260 – 410	32.5 – 51.2	25.7	1/8	Digital	Through Hole	No	100
BCM380P475M1K2A30	260 – 410	32.5 – 51.2	25.7	1/8	Analog	Through Hole	No	100
BCM352T440T330A00	330 – 365	41.3 – 45.6	7.7	1/8	Analog	Through Hole	No	100
BCM352T125T300A00	330 – 365	11.8 – 13	26	1/28	Analog	Through Hole	No	1200
BCM352T110T300B00	330 – 365	10.3 – 11.4	28.5	1/32	Analog	Through Hole	No	1200
BCM352F440T330A00	330 – 365	41.3 – 45.6	7.7	1/8	Analog	J-Lead	No	100
BCM352F110T300B00	330 – 365	10.3 – 11.4	28.5	1/32	Analog	J-Lead	No	1200
