Supermicro NVIDIA MGX™ システム
本ページでは、Supermicro社の最新のNVIDIA GH200 Grace Hopper™ superchipとNVIDIA Grace™ CPU superchipを搭載したSupermicro NVIDIA MGX™ システムをご紹介いたします。
Supermicro NVIDIA MGX™ システムは、未来のAIインフラの基盤となる技術であり、数兆パラメータのAIトレーニングとリアルタイムAI推論において、画期的な性能を提供します。
商品基礎情報
NVIDIA MGX™とは
Supermicro の NVIDIA MGX™ システムは、最新の Al および アクセラレーテッドコンピューティング向けて専用設計された製品になります。NVIDIA H100 GPU と NVIDIA Grace CPU を単一チップ上で組み合わせた NVIDIA GH200 Grace Hopper™Superchip を1Uのラックマウントフォームファクターに最大２基搭載し、コンパクトで高密度、ハイパフォーマンスを実現します。
NVIDIA Grace Platform
NVIDIA Grace Platformについて
NVIDIA Grace Platform

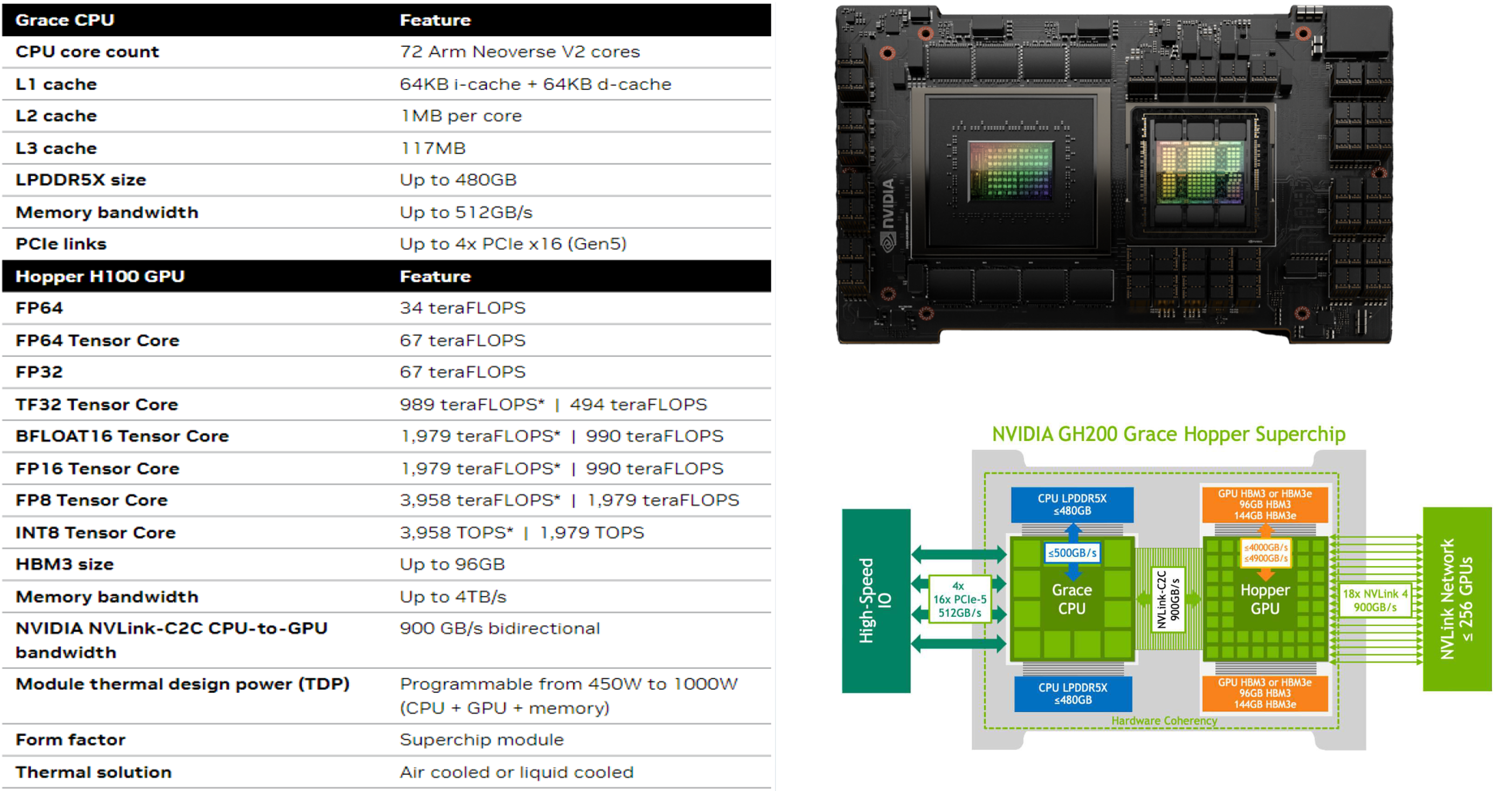

Grace Hopper Superchip
- NVIDIA GH200 Grace Hopper Superchip は、NVIDIA NVLink®-C2C を使用して NVIDIA Grace™ および Hopper™ アーキテクチャを組み合わせ、AI および HPC アプリケーションを加速する CPU+GPU コヒーレント メモリ モデルを提供します。
- 900 ギガバイト/秒 (GB/s) のコヒーレント インターフェイスを備えたこのスーパーチップは、PCIe Gen5 よりも 7 倍の速度を実現します。また、HBM3 および HBM3e GPU メモリを搭載することで、アクセラレーテッド コンピューティングや生成 AI をさらに強化することができます。
Grace Hopper Superchip

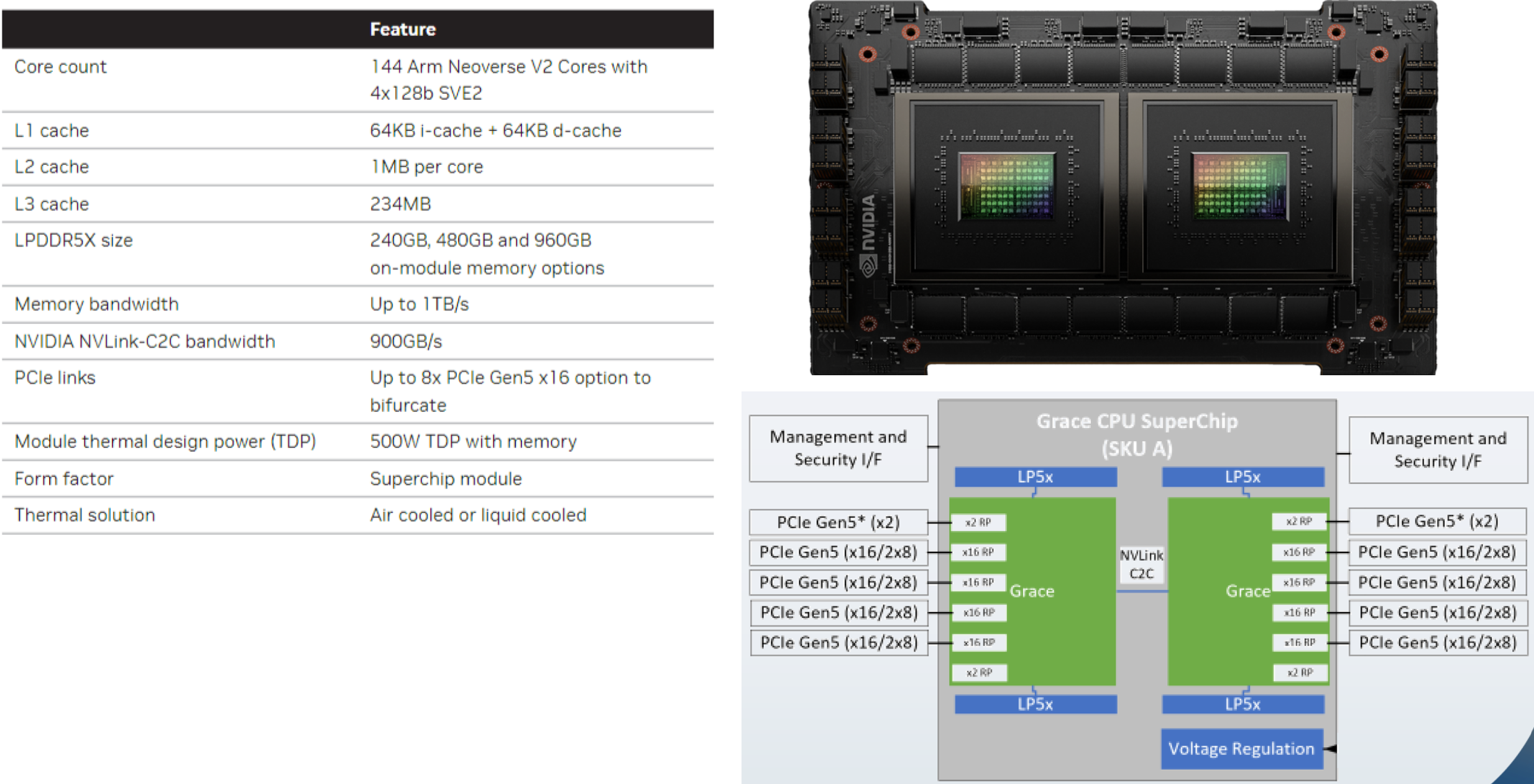

Grace CPU Superchip
NVIDIA Grace CPU Superchip は、NVIDIA NVLink®-C2C テクノロジを採用し、144 基の コアと 1 TB/秒のメモリ帯域幅を提供します。
- データ分析、クラウド、HPC のためのハイパフォーマンス CPU
- Scalable Vector Extensions (SVE2) 搭載の最大 144 個の Arm Neoverse V2 CPU コアを備えたスーパーチップ設計
- 3.2TB/秒のバイセクション帯域幅を備えた NVIDIA Scalable Coherency Fabric
- これまでにないエラー訂正コード (ECC) 付きメモリを備えた LPDDR5X、合計帯域幅 1TB/秒
- 900 ギガバイト/秒 (GB/s) コヒーレント インターフェイス、PCIe Gen 5 の 7 倍高速
- DIMM ベースのソリューションの 2 倍の実装密度
- 現在の主要な CPU の 2 倍のワットあたりの性能
- NVIDIA HPC SDK、NVIDIA AI、NVIDIA Omniverse™ をはじめとするあらゆる NVIDIA ソフトウェア スタックとプラットフォームを実行します。
Grace CPU Superchip

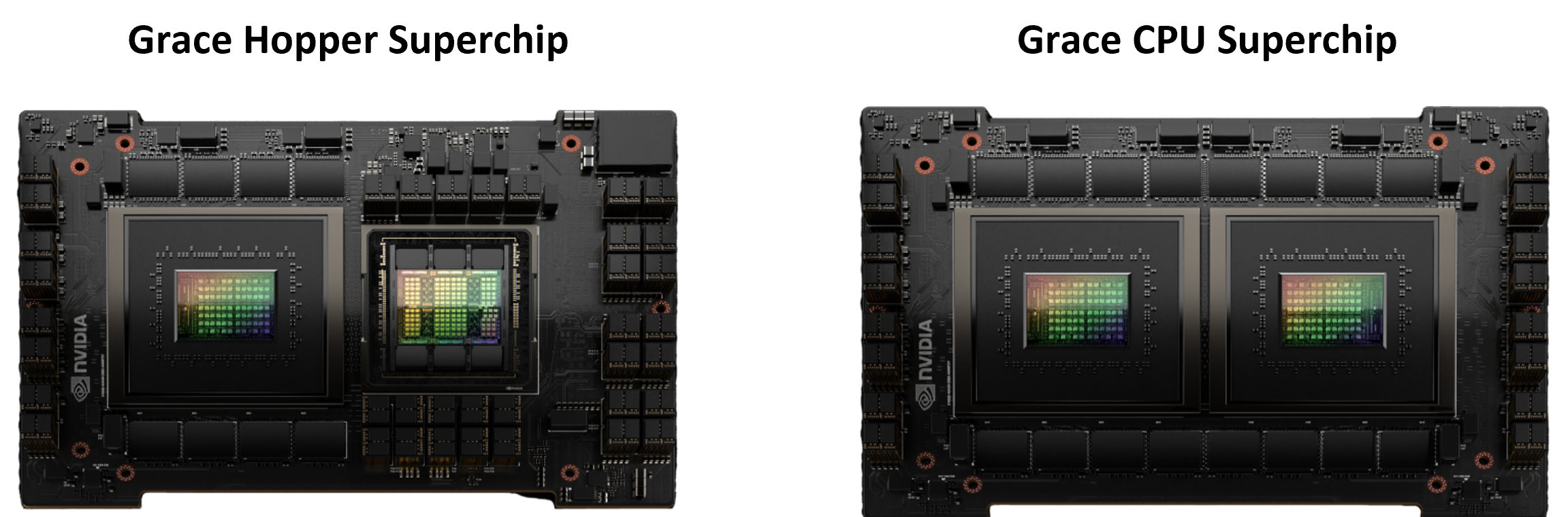

Supermicro NVIDIA MGX システム ラインアップ
1U Grace Hopper Superchip Systems

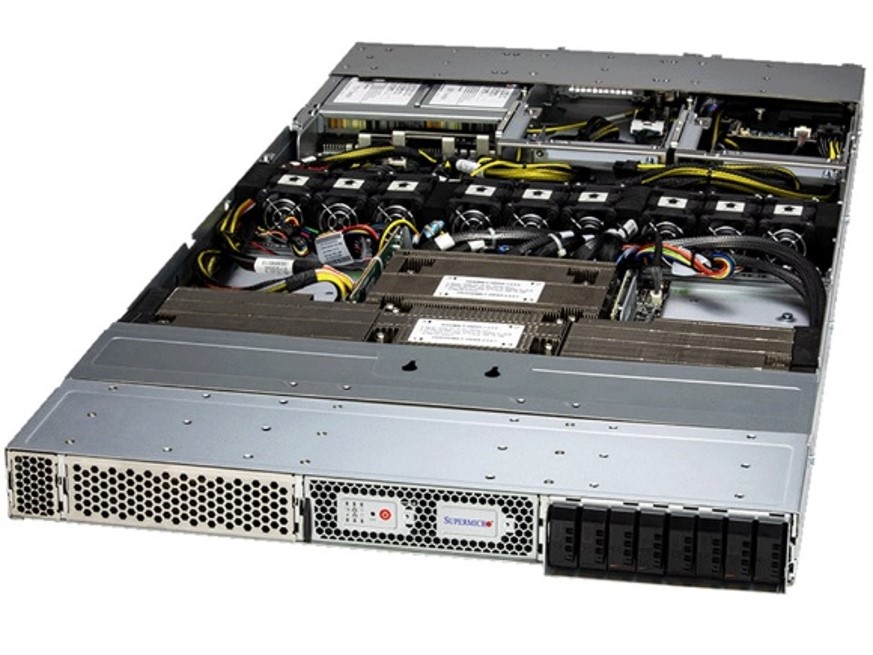

 1U with Grace Hopper |

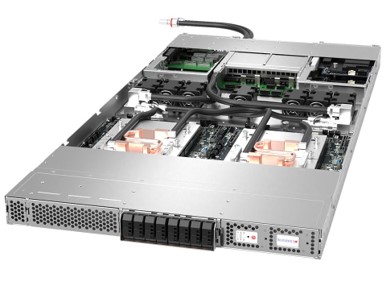

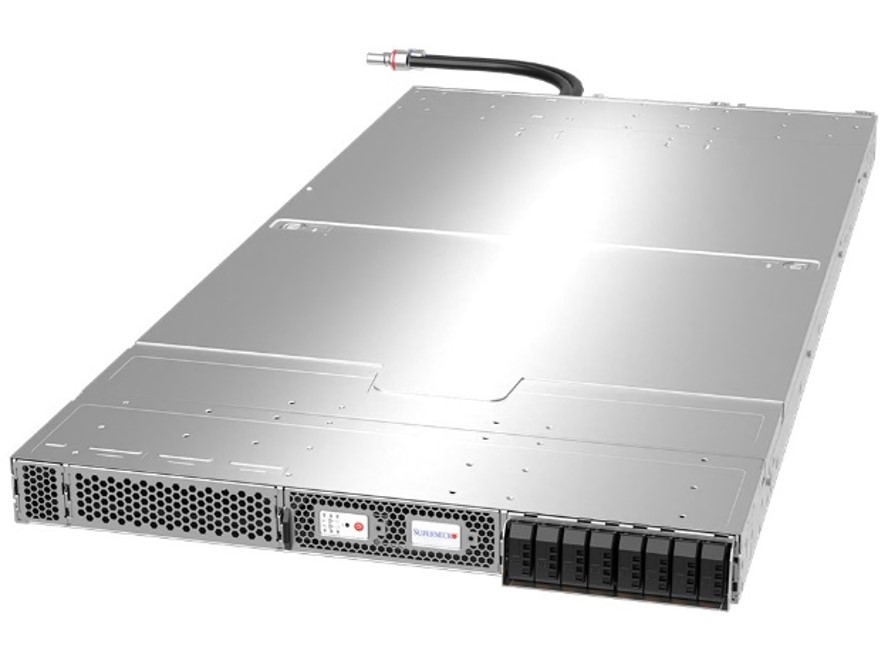

 1U with Grace Hopper LC |
 1U 2-Node with Grace Hopper |
|
| Model | ARS-111GL-NHR | ARS-111GL-NHR-LCC | ARS-111GL-DNHR-LCC |
| CPU | 72-core Grace Arm Neoverse V2 CPU + H100 Tensor Core GPU in a single chip |
72-core Grace Arm Neoverse V2 CPU + H100 Tensor Core GPU in a single chip |
72-core Grace Arm Neoverse V2 CPU + H100 Tensor Core GPU in a single chip per node |
| Cooling | Air-cooled | Liquid-cooled | Liquid-cooled |
| GPU Support | NVIDIA H100 Tensor Core GPU with 96GB of HBM3 | NVIDIA H100 Tensor Core GPU with 96GB of HBM3 | NVIDIA H100 Tensor Core GPU with 96GB of HBM3 per node |
| Memory | CPU: 480G integrated LPDDR5X with ECC GPU: 96GB HBM3 |
CPU: 480G integrated LPDDR5X with ECC GPU: 96GB HBM3 |
CPU: 480G integrated LPDDR5X with ECC per node GPU: 96GB HBM3 per node |
| Networking | 3x PCIe 5.0 x16 slots supporting NVIDIA BlueField-3 or ConnectX-7 | 3x PCIe 5.0 x16 slots supporting NVIDIA BlueField-3 or ConnectX-7 | 2x PCIe 5.0 x16 slots supporting NVIDIA BlueField-3 or ConnectX-7 |
| Storage | 8x Hot-swap E1.S drives and 2x M.2 NVMe drives | 8x Hot-swap E1.S drives and 2x M.2 NVMe drives | 4x Hot-swap E1.S drives and 2x M.2 NVMe drives per node |
| Power Supplies | 2x 2000W Titanium Level | 2x 2000W Titanium Level | 2x 2700W Titanium Level |
1U/2U Grace CPU Superchip & x86 Systems

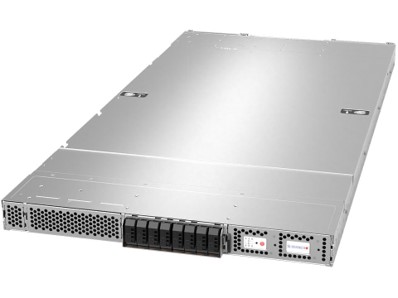

 1U 2-Node with Grace CPU |

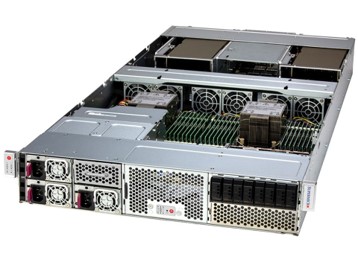

 2U with Grace CPU |
 2U with x86 DP |
|
| Model | ARS-121L-DNR | ARS-221GL-NR | SYS-221GE-NR |
| CPU | 144-core Grace Arm Neoverse V2 CPU in a single chip per node (total of 288 cores) |
144-core Grace Arm Neoverse V2 CPU in a single chip |
4th or 5th Generation Intel® Xeon® Scalable processors (up to 60-core per socket) |
| Cooling | Air-cooled | Air-cooled | Air-cooled |
| GPU Support | Please contact our sales for possible configurations | Up to 4 double-width GPUs including NVIDIA H100 PCIe, H100 NVL, L40S. | Up to 4 double-width GPUs including NVIDIA H100 PCIe, H100 NVL, L40S |
| Memory | Up to 480GB of integrated LPDDR5X with ECC and up to 1TB/s of memory bandwidth per node | Up to 480GB of integrated LPDDR5X with ECC and up to 1TB/s of memory bandwidth per node | Up to 2TB, 32x DIMM slots, ECC DDR5-4800 DIMM |
| Networking | 3x PCIe 5.0 x16 slots supporting NVIDIA BlueField-3 or ConnectX-7 |
3x PCIe 5.0 x16 slots supporting NVIDIA BlueField-3 or ConnectX-7 |
2x PCIe 5.0 x16 slots supporting NVIDIA BlueField-3 or ConnectX-7 |
| Storage | 4x Hot-swap E1.S drives and 2x M.2 NVMe drives per node | 8x Hot-swap E1.S drives and 2x M.2 NVMe drives | 8x Hot-swap E1.S drives and 2x M.2 NVMe drives |
| Power Supplies | 2x 2700W Titanium Level | 3x 2000W Titanium Level | 3x 2000W Titanium Level |
基本仕様 - Grace Hopper Superchip Systems -
ARS-111GL-NHR
NVIDIA GH200 Grace Hopper Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7
詳細はこちら（メーカページ）＞＞
| Product | |
| ARS-111GL-NHR | |
| Motherboard | |
| Super G1SMH-G | |
| Processor | |
| CPU | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip |
| Note | Supports up to 1000W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 1 onboard GPU(s) |
| Supported GPU | NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled) |
| CPU-GPU Interconnect | NVLink®-C2C |
| System Memory | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 480GB ECC LPDDR5X Additional GPU Memory: Up to 96GB ECC HBM3 |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| Input/Output | |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 1 USB 3.0 port(s) (Rear) |
| Video | 1 mini-DP port(s) |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-MG102TS-R000NDFP |
| Dimensions and Weight | |
| Height | 1.75″ (44 mm) |
| Width | 17.33″ (440 mm) |
| Depth | 37″ (940 mm) |
| Package | 9.5″ (H) x 48″ (W) x 28″ (D) |
| Weight | Gross Weight: 65.5 lbs (29.7 kg) Net Weight: 48.5 lbs (22 kg) |
| Available Color | Silver |
| Expansion Slots | |
| PCI-Express (PCIe) | Default |
| Configuration | 2 PCIe 5.0 x16 FHFL slot(s) |
| Drive Bays/Storage | |
| Drive Bays Configuration | Default: Total 8 bay(s) 8 front hot-swap E1.S NVMe drive bay(s) |
| M.2 | 2 M.2 NVMe slot(s) (M-key) |
| System Cooling | |
| Fans | 9 Removable heavy-duty 4cm Fan(s) |
| Power Supply | |
| 2x 2000W Redundant Titanium Level (96%) power supplies | |
| Dimension(WxHxL) | 73.5 x 40 x 185 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
ARS-111GL-NHR-LCC
NVIDIA GH200 Grace Hopper Superchip system with liquid-cooling supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7
詳細はこちら（メーカページ）＞＞
| Product | |
| ARS-111GL-NHR-LCC | |
| Motherboard | |
| Super G1SMH-G | |
| Processor | |
| CPU | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip |
| Note | Supports up to 1000W TDP CPUs (Liquid Cooled) |
| GPU | |
| Max GPU Count | Up to 1 onboard GPU(s) |
| Supported GPU | NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Liquid-cooled) |
| CPU-GPU Interconnect | NVLink®-C2C |
| System Memory | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 480GB ECC LPDDR5X Additional GPU Memory: Up to 96GB ECC HBM3 |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| Input/Output | |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| Video | 1 mini-DP port(s) |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-GP102TS-R000NDFP |
| Dimensions and Weight | |
| Height | 1.75″ (44 mm) |
| Width | 17.33″ (440 mm) |
| Depth | 37″ (940 mm) |
| Package | 9.5″ (H) x 48″ (W) x 28″ (D) |
| Weight | Gross Weight: 65.5 lbs (29.7 kg) Net Weight: 48.5 lbs (22 kg) |
| Available Color | Silver |
| Expansion Slots | |
| PCI-Express (PCIe) | Default |
| Configuration | 2 PCIe 5.0 x16 FHFL slot(s) |
| Drive Bays/Storage | |
| Drive Bays Configuration | Default: Total 8 bay(s) 8 front hot-swap E1.S NVMe drive bay(s) |
| M.2 | 2 M.2 NVMe slot(s) (M-key) |
| System Cooling | |
| Fans | 9 Removable heavy-duty 4cm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | |
| 2x 2000W Redundant Titanium Level (96%) power supplies | |
| Dimension(WxHxL) | 73.5 x 40 x 185 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
ARS-111GL-DNHR-LCC
1U 2-Node NVIDIA GH200 Grace Hopper Superchip system with liquid-cooling supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7
詳細はこちら（メーカページ）＞＞
| Product | |
| ARS-111GL-DNHR-LCC | |
| Motherboard | |
| Super G1SMH-G | |
| Processor | |
| CPU | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip |
| Note | Supports up to 2000W TDP CPUs (Liquid Cooled) |
| GPU(per Node) | |
| Max GPU Count | Up to 1 onboard GPU(s) |
| Supported GPU | NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Liquid-cooled) |
| CPU-GPU Interconnect | NVLink®-C2C |
| GPU-GPU Interconnect | PCIe |
| System Memory | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 480GB ECC LPDDR5X Additional GPU Memory: Up to 96GB ECC HBM3 |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| Input/Output | |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 port(s) (Rear) |
| Video | 1 mini-DP port(s) |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-GP102TS-R000NDFP |
| Dimensions and Weight | |
| Height | 1.75″ (44 mm) |
| Width | 17.33″ (440 mm) |
| Depth | 37″ (940 mm) |
| Package | 9.5″ (H) x 48″ (W) x 28″ (D) |
| Weight | Gross Weight: 65.5 lbs (29.7 kg) Net Weight: 48.5 lbs (22 kg) |
| Available Color | Silver |
| Expansion Slots(per Node) | |
| PCI-Express (PCIe) | Default |
| Configuration | 2 PCIe 5.0 x16 FHFL slot(s) |
| Drive Bays/Storage(per Node) | |
| Drive Bays Configuration | Default: Total 4 bay(s) 4 front hot-swap E1.S NVMe drive bay(s) |
| M.2 | 2 M.2 NVMe slot(s) (M-key) |
| System Cooling | |
| Fans | 7 Removable heavy-duty 4cm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | |
| 2x 2000W Redundant Titanium Level (96%) power supplies | |
| Dimension(WxHxL) | 73.5 x 40 x 185 mm |
| AC Input | 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) |
| 12V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
基本仕様 - 1U/2U Grace CPU Superchip & x86 Systems -
ARS-121L-DNR
1U 2-Node NVIDIA Grace CPU Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7
詳細はこちら（メーカページ）＞＞
| Product | |
| ARS-121L-DNR | |
| Motherboard | |
| Super G1SMH | |
| Processor | |
| CPU | Single processor(s) NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip |
| Note | Supports up to 500W TDP CPUs (Air Cooled) |
| GPU(per Node) | |
| Max GPU Count | Up to 1 double-width or 1 single-width GPU(s) |
| GPU-GPU Interconnect | PCIe |
| System Memory(per Node) | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 480GB ECC |
| On-Board Devices(per Node) | |
| Chipset | NVIDIA C2 |
| Network Connectivity | View AOC Options |
| Input/Output(per Node) | |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 port(s)(rear) |
| Video | 1 mini-DP port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-GP102TS-R000NDFP |
| Dimensions and Weight | |
| Height | 1.75″ (44 mm) |
| Width | 17.33″ (440 mm) |
| Depth | 37″ (940 mm) |
| Package | 9.5″ (H) x 48″ (W) x 28″ (D) |
| Weight | Gross Weight: 65.5 lbs (29.7 kg) Net Weight: 48.5 lbs (22 kg) |
| Available Color | Silver |
| Expansion Slots(per Node) | |
| PCI-Express (PCIe) | Default |
| Configuration | 2 PCIe 5.0 x16 FHFL slot(s) |
| Drive Bays/Storage(per Node) | |
| Drive Bays Configuration | Default: Total 4 bay(s) 4 front hot-swap E1.S NVMe drive bay(s) |
| M.2 | 2 M.2 NVMe slot(s) (M-key) |
| System Cooling | |
| Fans | 9 Removable heavy-duty 4cm Fan(s) |
| Power Supply | |
| 2x 2000W Redundant Titanium Level (96%) power supplies | |
| Dimension(WxHxL) | 73.5 x 40 x 185 mm |
| AC Input | 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) |
| 12V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
ARS-221GL-NR
DP NVIDIA Grace Superchip system with up to 2 L40S or 2 single non-bridged NVIDIA H100 NVL
詳細はこちら（メーカページ）＞＞
| Product | |
| ARS-221GL-NR | |
| Motherboard | |
| Super G1SMH | |
| Processor | |
| CPU | Dual processor(s) NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip |
| Note | Supports up to 500W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 2 double-width GPU(s) |
| Supported GPU | NVIDIA PCIe: H100 NVL, L40S |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| System Memory | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 960GB ECC LPDDR5X |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | NVIDIA C2 |
| Network Connectivity | 1 RJ45 1 GbE |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input/Output | |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 USB 3.0 Type-A port(s) (Rear) |
| Video | 1 mini-DP port(s) |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | Redfish API Supermicro Update Manager (SUM) KVM with dedicated LAN IPMI 2.0 Watch Dog OOB Management Package (SFT-OOB-LIC ) |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-GP201TS-R000NP |
| Dimensions and Weight | |
| Height | 3.46″ (88 mm) |
| Width | 17.25″ (438.4 mm) |
| Depth | 35.43″ (900 mm) |
| Package | 11″ (H) x 22.5″ (W) x 45.5″ (D) |
| Weight | Gross Weight: 86.5 lbs (39.2 kg) Net Weight: 67.5 lbs (30.6 kg) |
| Available Color | Black front & silver body |
| Front Panel | |
| LED | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Buttons | Power On/Off button System Reset button |
| Expansion Slots | |
| PCI-Express (PCIe) | Default |
| Configuration | 3 PCIe 5.0 x16 FHFL slot(s) 2 PCIe 5.0 x16 FHFL double-width slot(s) |
| Drive Bays/Storage | |
| Drive Bays Configuration | Default: Total 4 bay(s) 4 front hot-swap E1.S NVMe drive bay(s) |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 22110) |
| System Cooling | |
| Fans | 6 heavy duty fans with optimal fan speed control |
| Power Supply | |
| 2x 2000W Redundant Titanium Level (96%) power supplies | |
| Dimension(WxHxL) | 73.5 x 40 x 185 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
SYS-221GE-NR
DP Intel 2U PCIe GPU System with up to 4 NVIDIA H100, H100 NVL, or L40S
詳細はこちら（メーカページ）＞＞
| Product | |
| SYS-221GE-NR | |
| Motherboard | |
| Super X13DEH | |
| Processor | |
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 4 double-width GPU(s) |
| Supported GPU | NVIDIA PCIe: H100 NVL, H100, L40S |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional) |
| System Memory | |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | Intel® C741 |
| Network Connectivity | 1 RJ45 1 GbE |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input/Output | |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 port(s) (Rear) |
| Video | 1 mini-DP port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | Redfish API Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 OOB Management Package (SFT-OOB-LIC ) SMCIPMITool IPMIView |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-GP201TS-R000NP |
| Dimensions and Weight | |
| Height | 3.46″ (88 mm) |
| Width | 17.25″ (438.4 mm) |
| Depth | 35.43″ (900 mm) |
| Package | 11″ (H) x 22.5″ (W) x 45.5″ (D) |
| Weight | Gross Weight: 86.5 lbs (39.2 kg) Net Weight: 67.5 lbs (30.6 kg) |
| Available Color | Black front & silver body |
| Front Panel | |
| LED | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Buttons | Power On/Off button System Reset button |
| Expansion Slots | |
| PCI-Express (PCIe) | Default |
| Configuration | 4 PCIe 5.0 x16 FHFL double-width slot(s) 3 PCIe 5.0 x16 FHFL slot(s) |
| Drive Bays/Storage | |
| Drive Bays Configuration | Default: Total 8 bay(s) 8 front hot-swap E1.S NVMe drive bay(s) |
| M.2 | 2 M.2 NVMe/SATA slot(s) (M-key) |
| System Cooling | |
| Fans | 6x 6cm heavy duty fans with optimal fan speed control |
| Fans | 1 Air Shroud(s) |
| Power Supply | |
| 2x 2000W Redundant Titanium Level (96%) power supplies | |
| Dimension(WxHxL) | 73.5 x 40 x 185 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 40°C (50°F ~ 104°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
